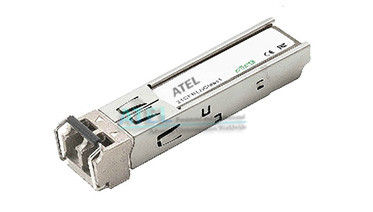

Dual Fiber SFP
Features
AT-5524-12C(D)
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1550nm DFB laser and APD photo detector for 120km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External
Calibration
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard : 0 to +70°C
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane application
- Router/Server interface
- Other optical transmission systems
Ordering information
|
Part Number
|
Data Rate
|
Distance
|
LD
|
PD
|
DDMI
|
|
AT-8503-02C(D)
|
155Mbps
|
2km
|
850nm VCSEL
|
PIN
|
N(Y)
|
|
AT-1303-02x(D)
|
155Mbps
|
2KM
|
1310nm FP(LED)
|
PIN
|
N(Y)
|
|
AT-3103-L2x(D)
|
155Mbps
|
20KM
|
1310nm FP
|
PIN
|
N(Y)
|
|
AT-3103-L4x(D)
|
155Mbps
|
40KM
|
1310nm FP
|
PIN
|
N(Y)
|
|
AT-5503-L8x(D)
|
155Mbps
|
80KM
|
1550nm DFB
|
PIN
|
N(Y)
|
|
AT-5503-12C(D)
|
155Mbps
|
120km
|
1550nm DFB
|
PIN
|
Y
|
|
AT-5503-15C(D)
|
155Mbps
|
150km
|
1550nm DFB
|
APD
|
Y
|
|
AT-3112-L2x(D)
|
622Mbps
|
20km
|
1310nm FP
|
PIN
|
N(Y)
|
|
AT-3112-L4x(D)
|
622Mbps
|
40km
|
1310nm DFB
|
PIN
|
N(Y)
|
|
AT-5512-L8x(D)
|
622Mbps
|
80km
|
1310nm DFB
|
PIN
|
N(Y)
|
|
AT-5512-12C(D)
|
622Mbps
|
120km
|
1550nm DFB
|
APD
|
N(Y)
|
|
AT-8524-S5x(D)
|
1.25Gbps
|
550m
|
850nm VCSEL
|
PIN
|
N(Y)
|
|
AT-3124-L2x(D)
|
1.25Gbps
|
20km
|
1310nm FP
|
PIN
|
N(Y)
|
|
AT-3124-L4x(D)
|
1.25Gbps
|
40km
|
1310nm DFB
|
PIN
|
N(Y)
|
|
AT-5524-L8x(D)
|
1.25Gbps
|
80km
|
1550nm DFB
|
PIN
|
N(Y)
|
|
AT-5524-12C(D)
|
1.25Gbps
|
120km
|
1550nm DFB
|
APD
|
Y
|
|
AT-852F-S3x(D)
|
2.125Gbps
|
300m
|
850nm VCSEL
|
PIN
|
N(Y)
|
|
AT-312F-L1x(D)
|
2.125Gbps
|
10km
|
1310nm FP
|
PIN
|
N(Y)
|
|
AT-312F-L2x(D)
|
2.125Gbps
|
20km
|
1310nm DFB
|
PIN
|
N(Y)
|
|
AT-312F-L4C(D)
|
2.125Gbps
|
40km
|
1310nm DFB
|
APD
|
Y
|
|
AT-552F-L8C(D)
|
2.125Gbps
|
80km
|
1550nm DFB
|
APD
|
Y
|
|
AT-5548-L4C(D)
|
2.67Gbps
|
40km
|
1550nm DFB
|
PIN
|
N(Y)
|
|
ATT-8548L-S3x(D)
|
2.67Gbps
|
300m
|
850nm VCSEL
|
/
|
N(Y)
|
|
ATR-8548L-S3x(D)
|
2.67Gbps
|
300m
|
/
|
PIN
|
N(Y)
|
|
AT-8548-S3x(D)
|
2.67Gbps
|
300m
|
850nm VCSEL
|
PIN
|
N(Y)
|
|
AT-3148-02x(D)
|
2.67Gbps
|
2km
|
1310nm FP
|
PIN
|
N(Y)
|
|
AT-3148-L2x(D)
|
2.67Gbps
|
20km
|
1310nm DFB
|
PIN
|
N(Y)
|
|
AT-5548-L2x(D)
|
2.67Gbps
|
20km
|
1550nm DFB
|
PIN
|
N(Y)
|
|
AT-3148-L4C(D)
|
2.67Gbps
|
40km
|
1310nm DFB
|
APD
|
Y
|
|
AT-5548-L8C(D)
|
2.67Gbps
|
80km
|
1550nm DFB
|
APD
|
Y
|
|
AT-5548-12C(D)
|
2.67Gbps
|
120km
|
1550nm DFB
|
APD
|
Y
|
|
