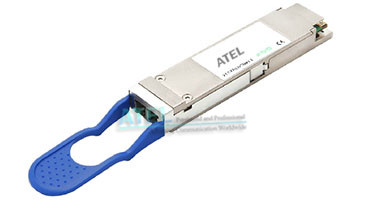

ATF-SPO400-LR4C(A-B)P

Description

This product enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 40Gbps data link in a compact QSFP footprint. The optical connectivity is based on two SMF LC connectors, one for TX and one for Rx. The TX and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-LR transceiver is designed for applications based on the IEEE 802.3ba 40BASE-LR4 standard of up to 10km reach.

Features (Pull-Tab)

- Transmission data rate up to 11.2Gbps per channel

- QSFP+ MSA compliant

- Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links

- 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1271, 1291, 1311 and 1331nm

- High Sensitivity PIN-TIA with optical DEMUX

- Up to 10km reach over standard single mode fiber

- Compliant with QDR/DDR Infiniband data rates

- Hot pluggable electrical interface

- Lower power consumption

- Operating case temperature 0°C to +70°C

·3.3V power supply

·RoHS 6 compliant（lead free）

Applications

- 40G Ethernet and OTU3

- Infiniband QDR and DDR interconnects

- Client-side 40G Telecom connections
