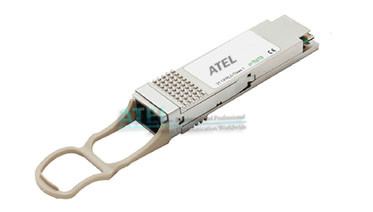

ATF-MPO560-SR4C

Description

ATF-MP560-SR4C is a four-channel, pluggable, parallel, fiber-optic QSFP+ transceiver for InfiniBand FDR/QDR/DDR/SDR, 16G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 56 Gbps bandwidth. Each lane can operate at 14.0625 Gbps up to 100 m using OM3 fiber or 150 m using OM4 fiber.

Features

-Four-channel full-duplex transceiver modules

-Transmission data rate up to 14.0625Gbit/s per channel

-4 channels 850nm VCSEL array

-4 channels PIN photo detector array

-Low power consumption <1.5W

-Housing isolated from connector ground

-Operating case temperature 0°C to +70°C

-3.3V power supply voltage

-Hot Pluggable QSFP form factor

-Maximum link length of 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

-Single MPO connector receptacle

-Built-in digital diagnostic function

-RoHS 6 compliant

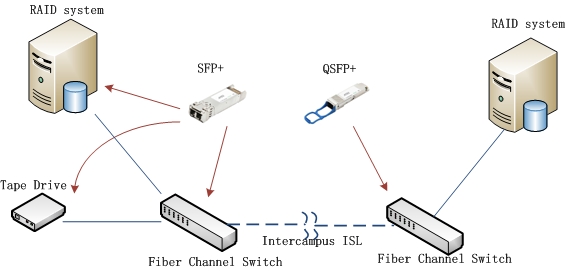

Applications

-InfiniBand FDR

-16x Fibre Channel

-PCI-e3.0

-Proprietary High-speed Interconnections

-SAS 3.0

Ordering information
