Description

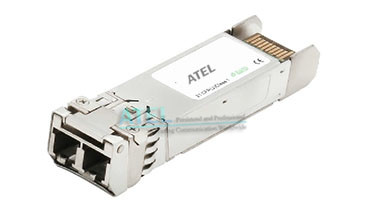

This 850 nm VCSEL 14Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber.

Features

-Optical interface compliant to IEEE 802.3ae

-Electrical interface compliant to SFF-8431

-Hot Pluggable

-850nm VCSEL transmitter, PIN photo-detector

-Maximum link length of 100m on 2000MHz/km MMF

-Low power consumption

-All-metal housing for superior EMI performance

-Advanced firmware allow customer system encryption information to be stored in transceiver

-Cost effective SFP+ solution, enables higher port densities and greater bandwidth

-Operating case temperature: Standard: 0 to +70°C

-RoHS6 compliant (lead free)

Applications

-14.025Gbps Fiber Channel

-Other optical links

Ordering information
