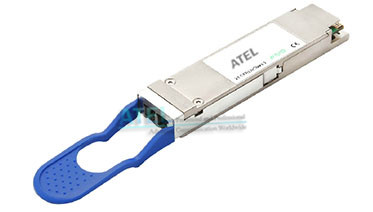

AT-SPO101-LR4C

Description

This product is a 100 GB/s receiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and ONT OUT4. The receiver module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet and ONT OUT4 applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

Features

▪ 4 channels full-duplex receiver modules

▪ Transmission data rate up to 28Gbps per channel

▪ 4 channels PIN ROSA

▪ Internal CDR circuits on receiver channels

▪ Low power consumption <1.5W

▪ Hot Pluggable QSFP form factor

▪ Up to reach 10km for G.652 SMF

▪ Duplex LC receptacles

▪ Built-in digital diagnostic functions

▪ Operating case temperature 0°C to +70°C

▪ 3.3V power supply voltage

▪ RoHS 6 compliant (lead free)

Application

▪IEEE 802.3ba 100GBASE LR4;

▪OTN OTU4 4I1-9D1F
