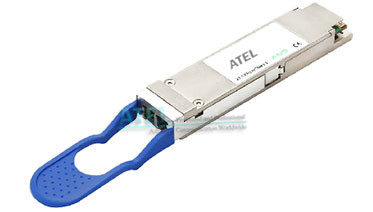

AT-SPO111-LR4CA

Description

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39(G.sup39). The module converts 4 input channels of 28Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56,1300.05,1304.58and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

▪ 4 channels full-duplex transceiver modules

▪ Transmission data rate up to 28Gbps per channel

▪ 4 x 28Gb/s DFB-based LAN-WDM Cooling transmitter

▪ 4 channels PIN ROSA

▪ Internal CDR circuits on both receiver and transmitter channels

▪ Low power consumption<3.5W

▪ Hot Pluggable QSFP form factor

▪ Up to reach 10km for G.652 SMF

▪ Duplex LC receptacles

▪ Built-in digital diagnostic functions

▪ Operating case temperature 0°C to +70°C

▪ 3.3V power supply voltage

▪ RoHS 6 compliant(lead free)

Applications

▪ IEEE 802.3ba 100GBASELR4

▪ OTN OTU4 and 100GE
