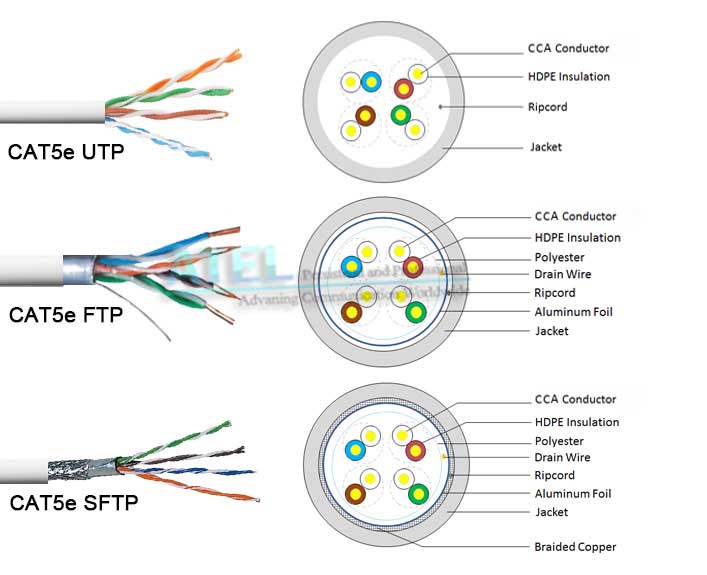

CAT5e UTP/FTP/SFTP

Descriptions ：

Industrial Standards：YD/T1019-2001、ANSI/TIA/EIA-568-B，ISO/IEC 11801/71156.

Conductor：CCA

Insulation：High-density Polythene (HDPE)

Jacket：Polyvinyl Chloride (PVC) 、LSZH

We can provide all kinds of colors according to customer’s requirements.

Rip wire (Optional)

Rating Temperature:75℃

Specifications:

CAT5e	CAT 5e UTP	CAT 5e FTP	CAT 5e SFTP
Conductor Size(AWG)	7/0.2 (24AWG)	￠0.515mm(24AWG)	￠0.515mm(24AWG)
Overall Diameter	5.5mm	5.6mm	6.1mm
Construction/mm	7/0.2	1/0.51	1/0.51
Conductor Pairs	4	4	4
Patchcord size	Length from 0.3cm to 30m	Length from 0.3cm to 30m	Length from 0.3cm to 30m
Shielding	/	Al foil	Braiding+Al foil
Material:	/	Solid tinned copper	Solid tinned copper
Jacket	PVC/CM/PE	PVC/CM	PVC/CM
Insulation Material:	PE	PE	HDPE
Insulation Wire diameter	￠0.92mm±0.02 mm	￠0.97mm±0.03 mm	￠0.97mm±0.03 mm
Delay skew	530ns/100m max.@100MHz；	530ns/100m max.@100MHz；	530ns/100m max.@100MHz；
Bending radius	Four times the cable diameter	Eight times the cable diameter	Eight times the cable diameter
Tensile Strength	≤93N	≤93N	≤93N
Impedance	100Ω±15%,1MHz to 100MHz	100Ω±15%,1MHz to 100MHz	100Ω±15%,1MHz to 100MHz
Working environment temperature	-20℃~60℃	-20℃~60℃	-20℃~60℃
Storage environment temperature	-20℃~80℃	-20℃~80℃	-20℃~80℃
Standard	ISO/IEC-11801 ClassD、CELENE EN-50173、 EN50167、EN50169、TIA/EIA-568B、EMC、EN55022；	ISO/IEC-11801 ClassD、CELENE EN-50173、 EN50167、EN50169、TIA/EIA-568B、EMC、EN55022	ISO/IEC-11801 ClassD、CELENE EN-50173、 EN50167、EN50169、TIA/EIA-568B、EMC、EN55022；
Applications:	ISDN、 10BASE-T Ethernet (IEEE802.3) 、 100BASE-T Ethernet(IEEE802.3) 、 155MbpsATM100、Vg-AnyLAN(IEEE802.12) 、 TP-PMD(ANSI X3T9.5)、 16Mbps Token Ring (IEEE802.5) 、 1000BASE-T Ethernet (IEEE802.3ab)
Tested	Fluke quality inspectors sampling	Fluke quality inspectors sampling	Fluke quality inspectors sampling
