Application：

Characteristics：

Adapted to Outdoor distribution

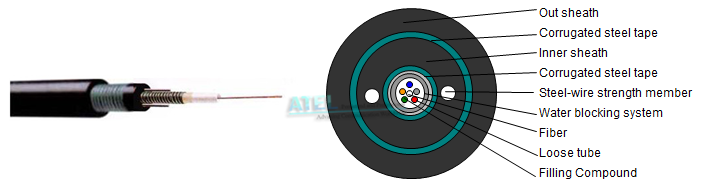

Steel-wire parallel member. Filler protect tube fiber. Two

steel tape armored

Suitable for aerial .pipeline laying method

Excellent mechanical and environmental performance

Long distance and local area network communication

Compact structure. Light weight.

Can be installed conveniently and operated simply

Technical Parameters:

Cable Count

（MM)

Weight

（KG)

Minimum allowable

Minimum allowable

Minimum

（℃）

short term

long term

short term

long term

short term

long term

2

12.0

165.00

3000

1000

1500

500

20D

10D

-40+60

4

12.0

165.00

3000

1000

1500

500

20D

10D

-40+60

6

12.0

165.00

3000

1000

1500

500

20D

10D

-40+60

8

12.0

165.00

3000

1000

1500

500

20D

10D

-40+60

10

12.0

165.00

3000

1000

1500

500

20D

10D

-40+60

12

12.0

165.00

3000

1000

1500

500

20D

10D

-40+60

Denominate:

            GY

           X

          T

           W53

GY:

 Outdoor Cable

          Sheath

X:

Central bundled

           Structure

           Strength member

T:

 Filling Compound

             Sort

W53:

  Steel-wire +Out sheath (Double)

Optical Characteristics

Fiber Sort

Multimode

           G.651

               A1a: 50/125

Graded-index fiber

       A1b: 62.5/125

Singlemode

G.652 (A、B、C、D）

B1.1:Conventional fiber

G.653

B2: Zero  dispersion shifted

G.654

B1.2:Cut-off wavelength shifted

G.655

B4: Main technical data for positive

    dispersion shifted single-mode fiber
